Steam Trap

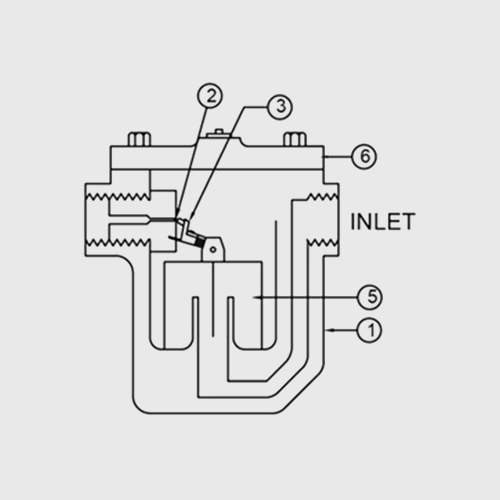

STEAM TRAP,HORIZONTAL,BUCKET TYPE
| SR. NO. | PART NAME | QTY. | MATERIAL |
| 1 | BODY | 1 | IS 210 CI Gr.FG 260 |
| 2 | SEAL | 1 | GUN METAL |
| 3 | VALVE | 1 | AISI 304 |
| 4 | NIPPLE | 1 | GUN METAL (85/5/5/5) |
| 5 | BUCKET | 1 | AISI 304 |
| 6 | COVER | 1 | IS 210 CI Gr.FG 260 |
| 7 | PACKING | 1 | ASBESTOS |
| PRIMARY SERVICE RATING | ||
| CLASS | WORKING PRESSURE | WORKING TEMP. |
| 150 | 50 PSIG | 200° F |
NOTE :- ALL DIM. ARE IN MM UNLESS OTHERWISE SPECIFIED

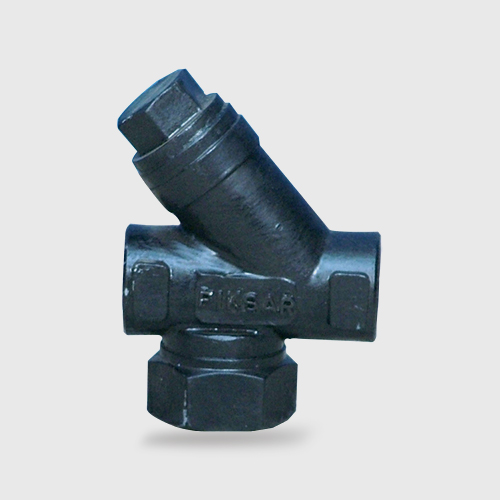

STEAM TRAP,THERMODYNAMIC

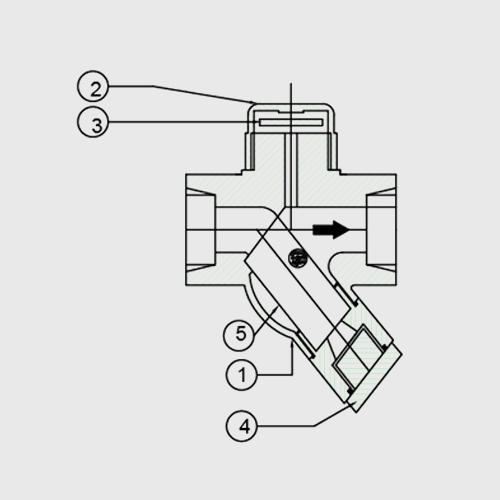

| BILL OF MATERIAL | ||
| SR. NO. | PART NAME | MATERIAL |
| 1 | BODY | AISI SS410 |
| 2 | MAIN BORE CAP | C.I. |
| 3 | DISC | AISI SS410 |
| 4 | FILTER CAP | AISI SS410 |
| 5 | FILTER | AISI SS410 |
| DIMENSIONS OF VALVES IN MM | |||
| SIZE | DN 15 | DN 15 | DN 20 |
| TOTAL LENGTH | 78 MM | 78 MM | 88 MM |
| CENTER TO TOP HEIGHT | 45 MM | 45 MM | 50 MM |
| BOTTOM TO TOP HEIGHT | 102 MM | 102 MM | 112 MM |
| THREAD LENGTH | 18 MM | 18 MM | 22 MM |
| QTY | – | – | – |
| CONSTRUCTION | THERMODYNAMIC STEAM TRAP |
| DESIGN & MFG. CODE | MFG. STD. |
| INSPECTION & TESTING | BS 6755 (I) |
| FACE TO FACE | MFG. STD. |
| END CONNECTION | AS SHOWN |
| CLIENT | – |
| CONSULTANT | – |
| P.O. NO. | – |
- MAX. OPERATING PRESSURE :- 50 BAR
- MAX OPERATING TEMPRETURE :- 400 °C
- MIN OPERATING PRESSURE :- 0.3 BAR
- MAX BACK PRESSURE :- 80%
NOTE :- ALL DIM. ARE IN MM UNLESS OTHERWISE SPECIFIED

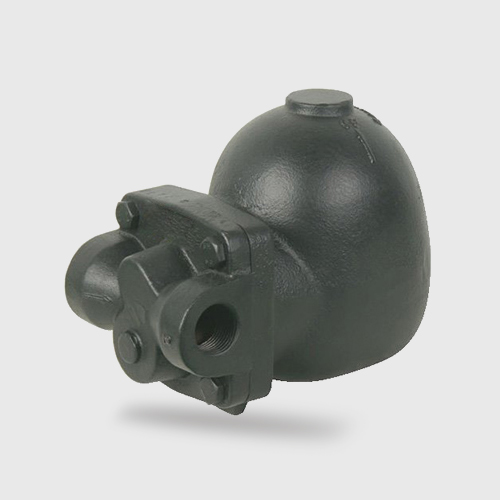

STEAM TRAP BALL FLOAT TYPE

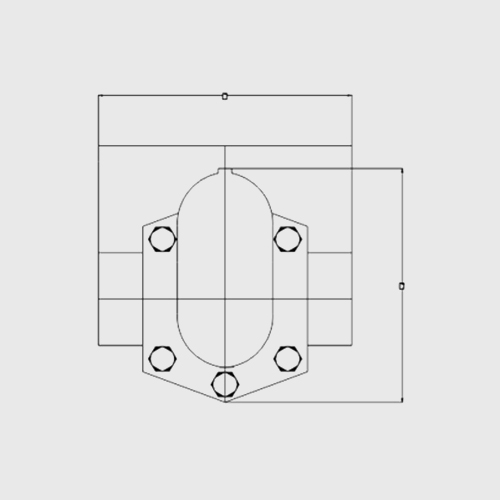

| PNO. | NOMENCLATURE | MATERIAL |
| 1 | BODY | CAST IRON IS 210 GR FG260 / CAST STEEL |
| 2 | COVER | CAST IRON IS 210 GR FG260 / CAST STEEL |
| 3 | VALVE SEAT | SS 304 |
| 4 | BALL FLOAT | SS 304 |
| 5 | AIRVENT ASSY. | SS 304 |
| 6 | BOLT & NUTS | CARBON STEEL |
| 7 | BRACKET ASSY. | SS 304 |
| 8 | DRAIN PLUG | C.S. |
| 9 | SLR UNIT | SS 304 / BRASS |
| 10 | GASKET | ASBESTOS |
| SIZE | A | B | C | D | E | Ø’d’ | ‘N’ |
| 1/2″ | 113 | 168 | 143 | 110 | 115 | 25 | 75 |
| 3/4″ | 113 | 168 | 143 | 110 | 115 | 25 | 80 |
| 1″ | 116 | 223 | 198 | 190 | 170 | 25 | 90 |
| 1.1/2″ | 270 | 285 | 247 | 220 | 210 | 38 | 105 |
| 2″ | 300 | 335 | 280 | 220 | 210 | 55 | 105 |

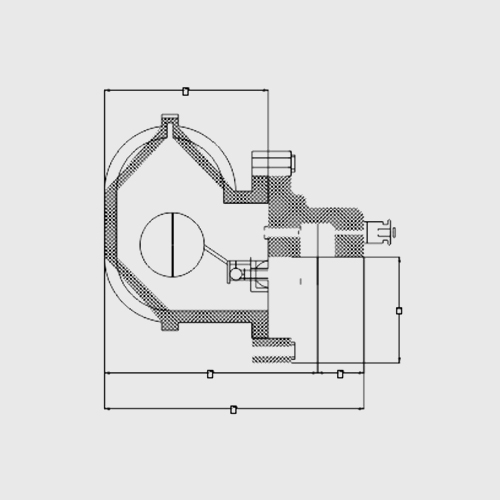

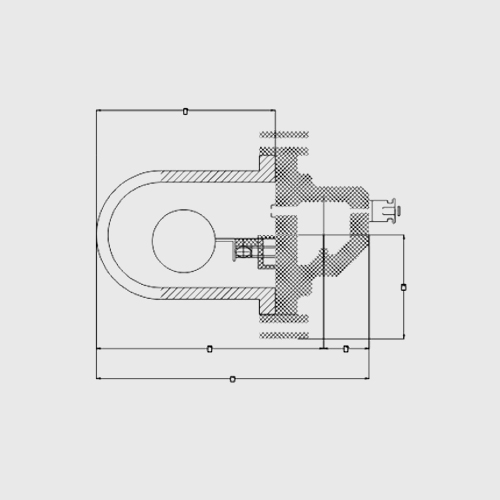

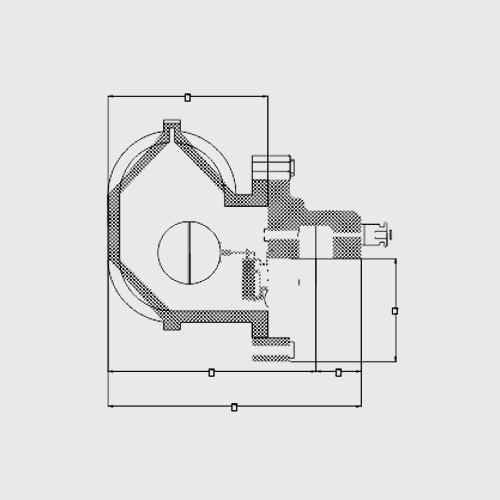

MAX. DIFFERENTIAL PRESSURE RANGE
| UPTO 65 PSI | 4.5 BAR |
| UPTO 145 PSI | 10 BAR |
| UPTO 203 PSI | 14 BAR |
| MAX OPERATING TEMPERATURE 250°C |
