Butterfly Valve Central Disc

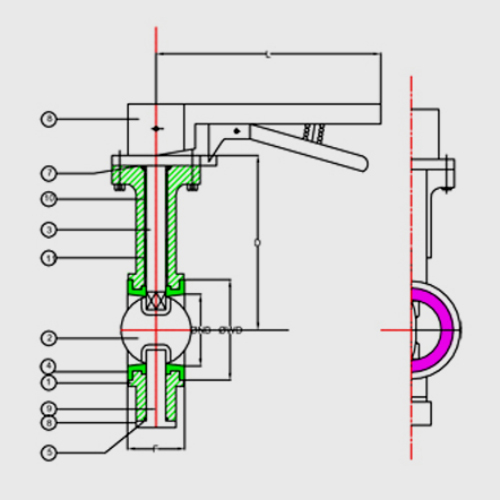

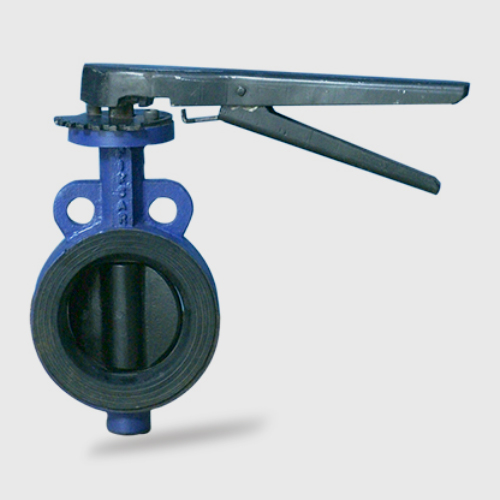

BUTTERFLY WAFER TYPE LEVER OPERATED 25 – 200

Leading Pneumatic Butterfly Valve, Butterfly valve, Industrial Butterfly Valve manufacturers, suppliers & exporters in India, Gujarat
HYDRO TEST PRESSURE
– SHELL SEAT
PN-10 16 kg/cm2 10 kg/cm2
PN-16 24 kg/cm2 16 kg/cm2
SIZE ØNB F ØWD H L
25 25 33 72 80 210
32 32 33 75 95 210
40 40 37 75 95 210
50 50 47 92 113 210
65 62 50 105 120 210
80 73 51 120 125 240
100 95 57 150 140 240
125 121 62 176 160 240
150 145 62 201 180 290
200 195 66 256 205 355
SR. NO. NOMENCLATURE MATERIAL
1 BODY CI IS 210 Gr. Fg. 260 / SG IRON / GGG50 /SS 304 / SS 316
2 DISC SG IRON / GGG50 /SS 304 / SS 316
3 SPINDLE AISI SS410
4 BONDING / LINING NITRILE / EPDM / NEOPREN / SILICON / VITON
5 ‘O’ RING NITRILE / EPDM
6 LEVER CARBON STEEL
7 ‘O’ RING NITRILE / EPDM
8 GUIDE SPINDLE AISI SS410
9 PIN SPRING STEEL
10 TOP BUSH PTFE / NYLONE / DARLIN
11 BOTTOM BUSH PTFE / NYLONE / DARLIN

NOTE :- (1) ALL DIM. ARE IN MM / UNLESS OTHERWISE SPECIFIED.

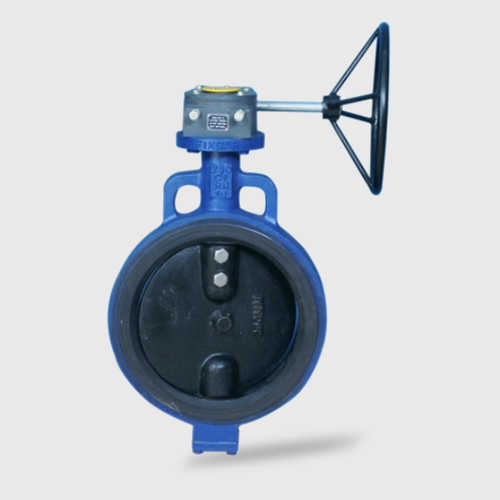

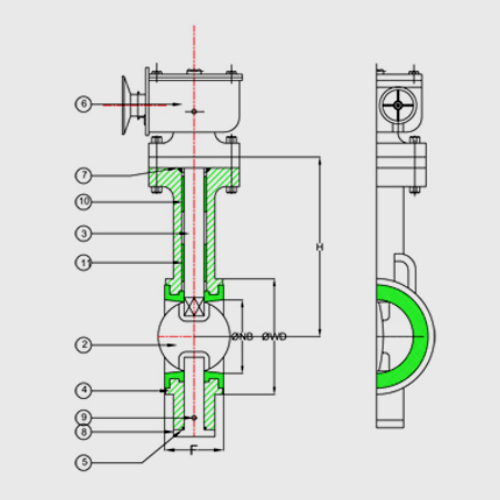

BUTTERFLY, WEFER TYPE, GEAR OPERATED. 100- 700

HYDRO TEST PRESSURE
– SHELL SEAT
PN-06 10 kg/cm2 06 kg/cm2
PN-10 16 kg/cm2 10 kg/cm2
PN-16 24 kg/cm2 16 kg/cm2
SIZE ØNB F ØWD H
100 99 57 150 140
125 125 62 176 160
150 148 62 201 180
200 193 66 256 205
250 244 70 324 280
300 295 78 380 310
350 332 93 413 320
400 393 100 488 375
450 430 112 534 400
500 480 132 584 425
600 575 150 715 585
700 685 160 800 625
SR. NO. NOMENCLATURE MATERIAL
1 BODY CI IS 210 Gr. Fg. 260 / SG IRON / GGG50 /SS 304 / SS 316
2 DISC SG IRON / GGG50 /SS 304 / SS 316
3 SPINDLE AISI SS410
4 BONDING / LINING NITRILE / EPDM / NEOPREN / SILICON / VITON
5 ‘O’ RING NITRILE / EPDM
6 GEAR BOX STANDARD
7 ‘O’ RING NITRILE / EPDM
8 GUIDE SPINDLE AISI SS410
9 PIN SPRING STEEL
10 TOP BUSH PTFE / NYLONE / DARLIN
11 BOTTOM BUSH PTFE / NYLONE / DARLIN

NOTE :- (1) ALL DIM. ARE IN MM / UNLESS OTHERWISE SPECIFIED.

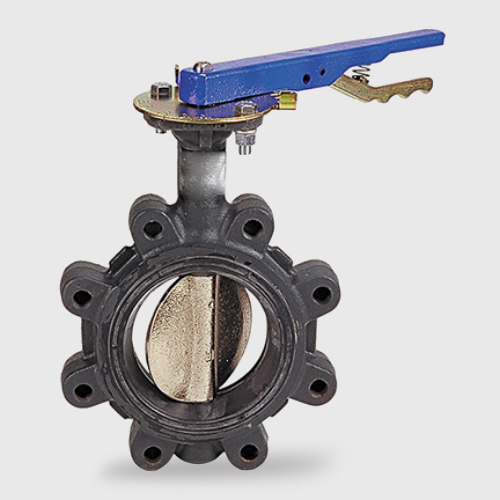

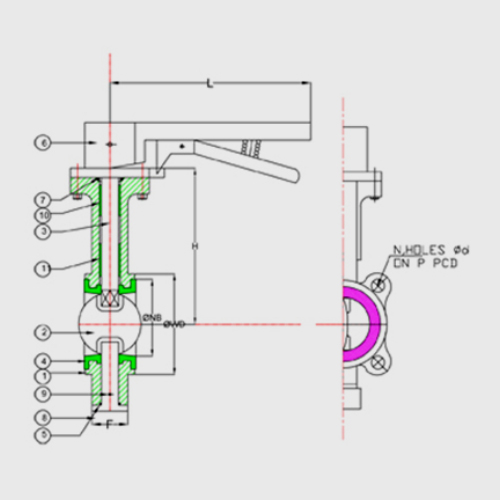

BUTTERFLY VALVE,LUG – 150 # H/W OPER. PN 16 / 25 – 80

TEST PRESSURE
BODY 16 kg/cm2
SEAT 10 kg/cm2
CLASS 150
SIZE ØNB F ØNB P Ød N H
25 25 33 72 79.4 16 4 80
32 32 33 75 89 16 4 95
40 40 37 75 98.4 16 4 95
50 50 47 92 120.6 19.1 4 105
65 62 50 105 139.7 19.1 4 115
80 74 51 120 152.4 19.1 4 125
SR. NO. NOMENCLATURE MATERIAL
1 BODY CI IS 210 Gr. Fg. 260 / SG IRON / GGG50 /SS 304 / SS 316
2 DISC SG IRON / GGG50 /SS 304 / SS 316
3 SPINDLE AISI SS410
4 BONDING / LINING NITRILE / EPDM / NEOPREN / SILICON / VITON
5 ‘O’ RING NITRILE / EPDM
6 GEAR BOX STANDARD
7 ‘O’ RING NITRILE / EPDM
8 GUIDE SPINDLE AISI SS410
9 PIN SPRING STEEL
10 TOP BUSH PTFE / NYLONE / DARLIN
11 BOTTOM BUSH PTFE / NYLONE / DARLIN

NOTE :- (1) ALL DIM. ARE IN MM / UNLESS OTHERWISE SPECIFIED.

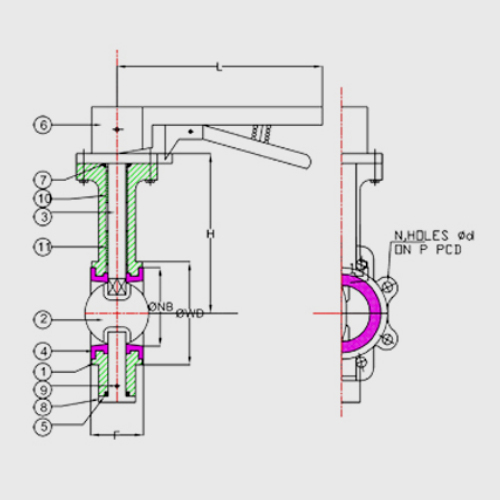

BUTTERFLY VALVE,LUG – 150 # H/W OPER. PN 16 100 – 300

TEST PRESSURE
BODY 16 kg/cm2
SEAT 10 kg/cm2
CLASS 150
SIZE ØNB F ØWD P Ød N H L
100 99 57 150 190.5 19.1 8 140 290
125 125 62 176 216 22.2 8 160 290
150 148 62 201 241.5 22.2 8 180 290
200 193 66 256 298.5 22.2 8 205 290
250 244 70 324 362 25.4 12 280 400
300 295 78 380 432 25.4 12 310 400
SR. NO. NOMENCLATURE MATERIAL
1 BODY CI IS 210 Gr. Fg. 260 / SG IRON / GGG50 /SS 304 / SS 316
2 DISC SG IRON / GGG50 /SS 304 / SS 316
3 SPINDLE AISI SS410
4 BONDING / LINING NITRILE / EPDM
5 ‘O’ RING NITRILE / EPDM
6 LEVER CARBON STEEL
7 ‘O’ RING NITRILE / EPDM
8 GUIDE SPINDLE AISI SS410
9 PIN SPRING STEEL
10 TOP BUSH PTFE / NYLONE / DARLIN
11 BOTTOM BUSH PTFE / NYLONE / DARLIN

NOTE :- (1) ALL DIM. ARE IN MM / UNLESS OTHERWISE SPECIFIED.

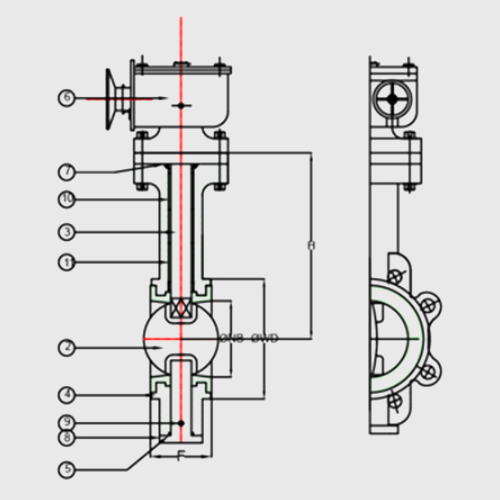

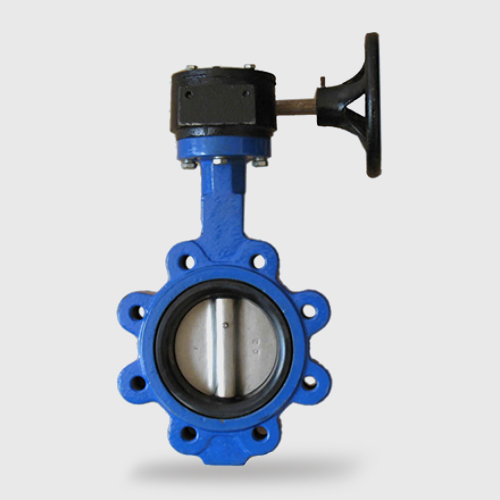

BUTTERFLY VALVE,LUG – 150 #, GEAR OPERATED. PN-16 100 – 700

HYDRO TEST PRESSURE
– SHELL SEAT
PN-06 10 kg/cm2 06 kg/cm2
PN-10 16 kg/cm2 10 kg/cm2
PN-16 24 kg/cm2 16 kg/cm2
CLASS 150
SIZE ØNB F ØWD P Ød N H
100 99 57 150 190.5 19.1 8 140
125 125 62 176 216 22.2 8 160
150 148 62 201 241.5 22.2 8 180
200 193 66 256 298.5 22.2 8 205
250 244 70 324 362 25.4 12 280
300 295 78 380 432 25.4 12 310
350 332 93 413 476 28 12 320
400 393 100 488 540 29 16 375
450 430 112 534 578 32 16 400
500 480 132 584 635 32 20 425
600 575 150 715 – – – 585
700 685 160 800 – – – 625
SR. NO. NOMENCLATURE MATERIAL
1 BODY CI IS 210 Gr. Fg. 260 / SG IRON / GGG50 /SS 304 / SS 316
2 DISC SG IRON / GGG50 /SS 304 / SS 316
3 SPINDLE AISI SS410
4 BONDING / LINING NITRILE / EPDM / NEOPREN / SILICON / VITON
5 ‘O’ RING NITRILE / EPDM
6 GEAR BOX STANDARD
7 ‘O’ RING NITRILE / EPDM
8 GUIDE SPINDLE AISI SS410
9 PIN SPRING STEEL
10 TOP BUSH PTFE / NYLONE / DARLIN
11 BOTTOM BUSH PTFE / NYLONE / DARLIN

NOTE :- (1) ALL DIM. ARE IN MM / UNLESS OTHERWISE SPECIFIED.
