Gate Valve

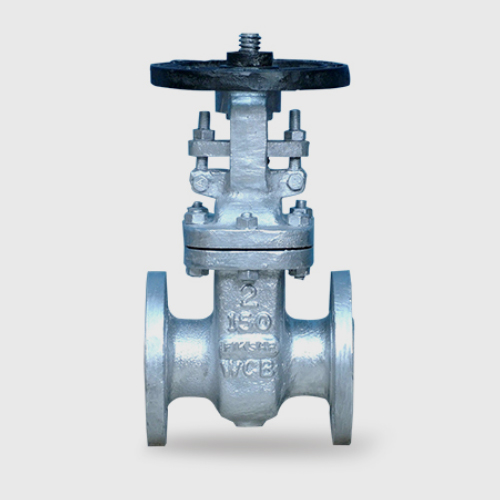

GATE VALVE , FLANGED ENDS, 150#

No1 Manufacturer of Gate Valve, Industrial gate valve, Gate valve price, Cast Iron Gate Valves Suppliers in India

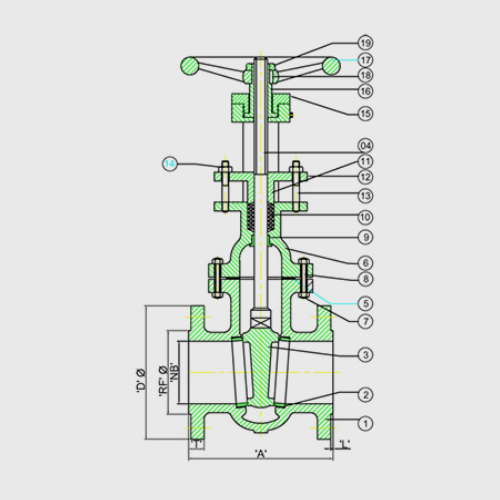

SR. NO.	PART NAME	QTY	MATERIAL
1	BODY	1	ASTM A 216 GR. WCB / ASTM A351 GR.CF8 / CF8M / CF3M
2	SEATRING	2	SS410 / SS304 / SS316 / SS316L
3	WEDGE	1	SS410 / SS304 / SS316 / SS316L
4	SPINDLE	1	SS410 / SS304 / SS316 / SS316L
5	GASKET	1	S.S. 304 / SS316 SPIRAL WOUND WITH CAF
6	BONNET	1	ASTM A 216 GR. WCB / ASTM A351 GR.CF8 / CF8M / CF3M
7	BONNET STUD NUT	AS REQD	ASTM A 194 GR. 2H
8	BONNET STUD	AS REQD	ASTM A 193 GR. B7
9	BONNET BUSH	1	S.S. AISI 410 / SS304 / SS316 / SS316L
10	GLAND PACKING	7	GRAPHOIL RINGS
11	GLAND	1	S.S. AISI 410 / SS304 / SS316 / SS316L
12	GLAND FLANGE	1	CARBON STEEL PROFILE
13	CROSS BOLT & NUT	2	CARBON STEEL
14	EYE BOLT & NUT	2	CARBON STEEL
15	YOKE SLEEVE	1	NI-RESIST / S.G. IRON
16	YOKE BUSH	1	SS AISI 410 / SS304 / SS316 / SS316L
17	HANDWHEEL	1	MALLEABLE IRON / SGI GR. 400/18 / GGG50
18	KEY	1	CARBON STEEL
19	HANDWHEEL NUT	1	CARBON STEEL

TEST PRESSURE
CLASS	HYDROSTATIC		AIR
CLASS	SEATRING	SEAT & BACKSEAT	SEAT
150	32 kg/cm2	22 kg/cm2	07 kg/cm2
300	76 kg/cm2	55 kg/cm2	07 kg/cm2
600	150 kg/cm2	110 kg/cm2	07 kg/cm2

CLASS 150
SIZE’NB	‘A’	‘D’	‘T’	‘RF’	‘L’
1″ / 25	127	108	11.1	51	1.6
11/4″ / 32	140	117.5	12.7	63.5	1.6
11/2″ / 40	165	127	14.3	73	1.6
2″ / 50	178	152.5	16	92	1.6
21/2″ / 65	190.5	178	17.5	105	1.6
3″ / 80	203	190.5	19	127	1.6
4″ / 100	229	229	24	157	1.6
5″ / 125	254	254	24	186	1.6
6″ / 150	267	279.5	25.4	216	1.6
8″ / 200	292	343	28.6	270	1.6
10″ / 250	330	406.5	30.5	324	1.6
12″ /300	356	483	32	381	1.6
14″ / 350	381	533.5	35	413	1.6
16″ / 400	406.5	597	36.5	470	1.6
18″ / 450	432	635	40	534	1.6
20″ / 500	457	698.5	43	584	1.6
24″ / 600	508	813	48	692	1.6

CLASS 300
SIZE’NB	‘A’	‘D’	‘T’	‘RF’	‘L’
1″ / 25	165	108	17.5	51	1.6
11/4″ / 32	178	117.5	19	63.5	1.6
11/2″ / 40	191	127	21	73	1.6
2″ / 50	216	152.5	22	92	1.6
21/2″ / 65	241.5	178	25.4	105	1.6
3″ / 80	282.5	190.5	29	127	1.6
4″ / 100	305	229	32	157	1.6
5″ / 125	381	254	35	186	1.6
6″ / 150	403.5	279.5	36.5	216	1.6
8″ / 200	419	343	41.5	270	1.61.6
10″ / 250	457.5	406.5	48	324	1.6
12″ /300	502	483	51	381	1.6
14″ / 350	762	533.5	54	413	1.6
16″ / 400	838.5	597	57.5	470	1.6
18″ / 450	914.5	635	60.5	534	1.6
20″ / 500	991	698.5	63.5	584	1.6
24″ / 600	1143	813	70	692	1.6

CLASS 600
SIZE’NB	‘A’	‘D’	‘T’	‘RF’	‘L’
1″ / 25	216	124	24	51	1.6
11/4″ / 32	229	133.5	27	63.5	1.6
11/2″ / 40	241.5	156	28.6	73	1.6
2″ / 50	292	165	32	92	1.6
21/2″ / 65	330	190.5	35	105	1.6
3″ / 80	356	210	38	127	1.6
4″ / 100	432	273	44.5	157	1.6
5″ / 125	508	330.5	51	186	1.6
6″ / 150	559	356	54	216	1.6
8″ / 200	660.5	419	62	270	1.6
10″ / 250	787.5	508	70	324	1.6
12″ /300	838.5	559	73	381	1.6
14″ / 350	889	603.5	76.5	413	1.6
16″ / 400	991	686	82.5	470	1.6
18″ / 450	1093	743	89	534	1.6
20″ / 500	1194	813	95.5	584	1.6
24″ / 600	–	–	–	–	–
