Butterfly Valve Pneumatic Actuator Operated

Butterfly Valve 40mm

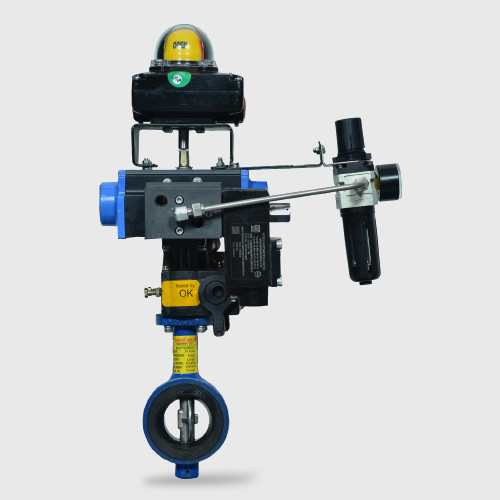

Butterfly Valve 50mm

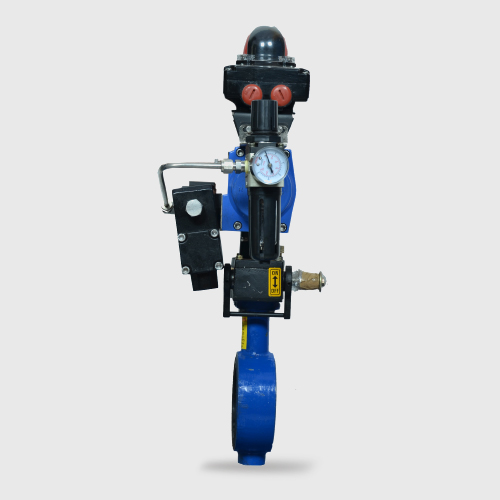

Butterfly Valve 80mm

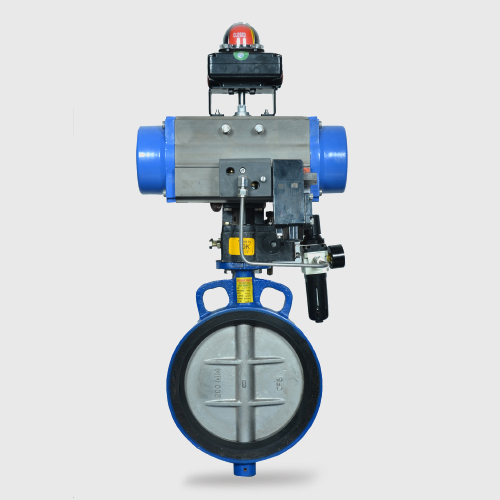

Butterfly Valve 200mm

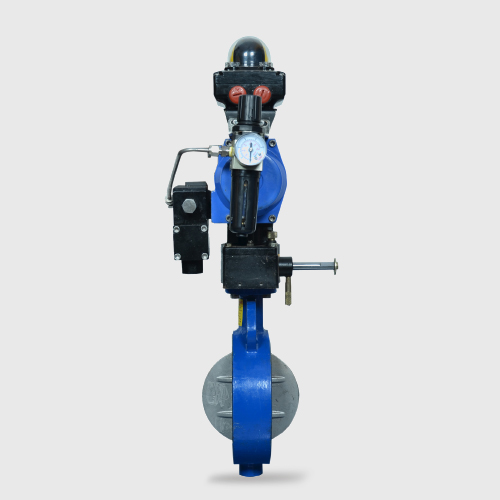

Butterfly Valve 150mm

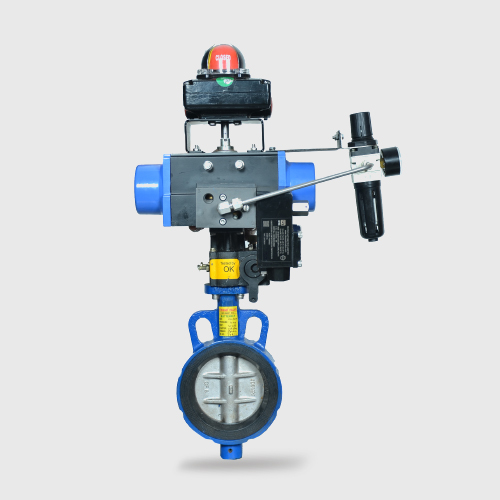

Butterfly Valve 100mm
SIZE 40 50 65 80 100 125 150 200 250 300
Port 40.5 50 62 76.5 100.5 125.5 150.5 199 250 300
L 33 43 46 46 52 56 56 60 68 78

ØWD

 81.5 95 108 126 157 189 211 266 328 378.5
Qty.

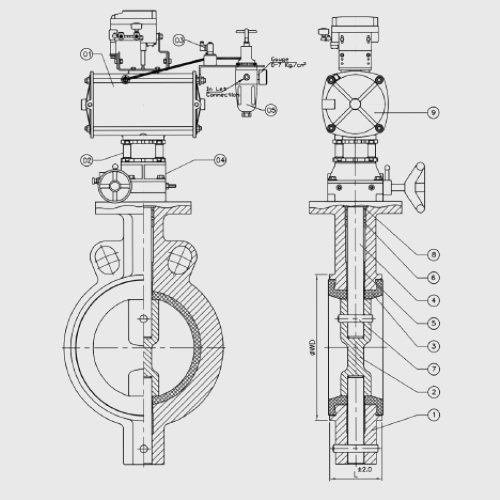

NO. DESCRIPTION
01 SINGLE ACTING / DOUBLE ACTING ACTUATOR
02 BRACKET
03 3/2 WAY / 5/2 WAY SINGLE COIL / DOUBLE COIL
04 MANUAL OVER RIDE
05 FR COMBINATION & GUAGE
P.No Nomenclature Material
1 Body ASTM A216 Gr. WCB
2 Disc ASTM A351 Gr. CF8M
3 Seat (Integrally Moulded) EPDM
4 Stem AISI 304
5 Bearing Bush PTFE
6 Bush PTFE
7 Taper Pin SS 304
8 ‘O’ Rings EPDM
9 Pneumatic Rotary Actuator (Single Acting / DOUBLE ACTING) MFG. STD.
TEST PRESSURE
TESTING BODY SEAT
HYDRAULIC 24 Kg/Cm² 16 Kg/Cm²
CONSTRUCTION: SLEEM SEAL WAFER TYPE BUTTERFLY VALVE MANUALY OVER RIDE & ACTUATORE OP.
DESIGN & MFG. CODE BS 5155/AWWA C 504/API 609
INSPECTION & TESTING API 598 / BS 6755 (1)
FACE TO FACE API-609/BS 5155
END CONNECTION WAFER TYPE
