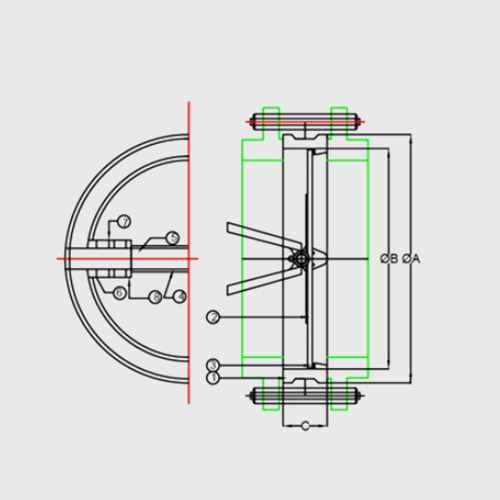

Dual Plate Check Valve

WAFER CHECK VALVE,DISC TYPE

P.NO. NOMENCLATURE MATERIAL
1 BODY C.I. / S.G. IRON / SS 304 / SS 316
2 DISC C.I. / S.G. IRON / SS 304 / SS 316
3 SOFT SEAT NITRILE / EPDM. ETC.
4 SPRING AISI SS 304
5 HINGE PIN AISI SS 304
6 BODY BEARING NYLON
7 DISC BEARING NYLON
8 SPRING BEARING
HYDRO TEST PRESSURE
BODY 16 kg / cm2
SEAT 10 kg / cm2
DESIGN & MFG. CODE API-594 / API-6D
FACE TO FACE API-594
INSPECTION & TESTING API-598
END CONNECTION WAFER TYPE TO SUIT BETWEEN BS 10 TABLE ‘D’ / 150#
DIMENTION IN MM
SIZE A ØB C
50 93 60 60
65 105 73 67
80 127 89 73
100 157 114 73
125 180 141 86
150 215 168 98
200 270 219 127
250 324 273 146
300 380 324 181
NOTE : – ALL DIM. ARE IN MM UNLESS OTHERWISE STATED.

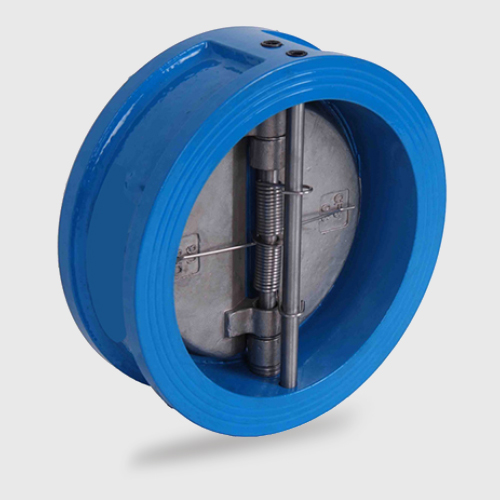

Dual Plate Check Valve Manufacturer & Exporter

We are the leading dual plate check valves manufacturer in Ahmedabad, Gujarat. The best quality Dual Plate Check Valve are provided by our company in manufactured using the best quality raw materials. These dual plate check valves are the type of the non return valves that are very light in weight, small in size yet stronger in natures.

The dual plate check valves mainly comprised of the two spring loaded plates hinged that are connected with a hinge pin. Whenever there is the fluctuation in the flow at that time the plates closed themselves completely and hence eliminate the chance of the reverse flow. The design of these valves is the most efficient. The wide range of the dual plate check valves is provided by us that are available in different size 60 mm to 650 mm that customers can select them as per the their requirement.

The whole manufacturing process is carried out the under the strict supervision and after passing the strict quality standards they are hand over to the customers. We are the leading dual plate check valves supplier in New Delhi, Mumbai, Uttar Pradesh, Rajasthan, Madhya Pradesh, Maharashtra, Chennai, Andra Pradesh, etc. Also the dual plate check valves exporter in Gujarat. Kindly contact us for more details we will provide you the complete solution related to the different type of the valves that also at the affordable price. The fast and secure service of the dual plate check valves is provided by us worldwide.
