Pressure Balancing Plug Valve

ALSO AVAILABLE SIZES 50MM TO 150MM LEVER AND GEAR OPERATED

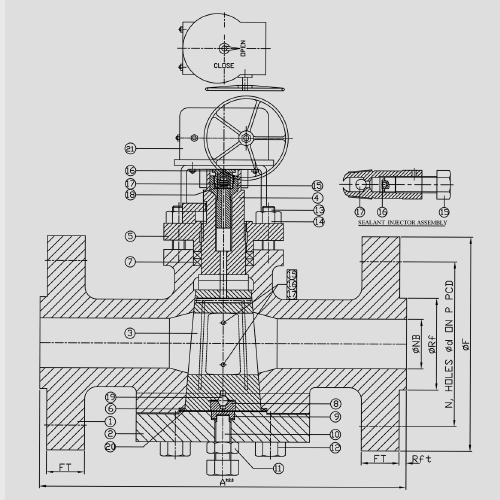

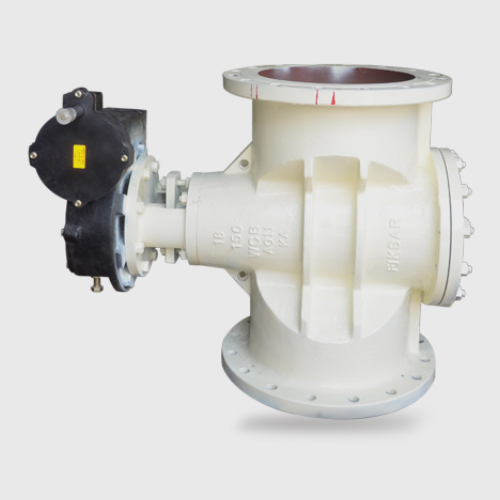

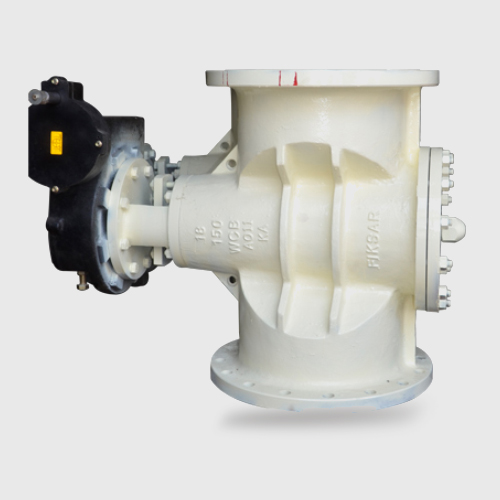

8-24 x 150 PLUG ASSLY GO MODEL

SIZE ØNB ØF FT ØRf Rft ød N P A QTY.
200MM 203 345 27.0 269.9 2.0 22.2 8 298.5 292
250MM 254 405 28.6 328.8 2.0 25.4 12 362.0 330
300MM 305 485 30.2 381.0 2.0 25.4 12 431.8 356
350MM 337 535 33.4 412.8 2.0 28.6 12 476.3 686
400MM 387 595 35.0 469.9 2.0 28.6 16 539.8 762
450MM 438 635 38.1 533.4 2.0 31.8 16 577.9 864
500MM 489 700 41.3 584.2 2.0 31.8 20 635.0 914
600MM 591 815 46.1 692. 2.0 35.0 20 749.3 1067
CLASS HYDROSTATIC BODY HYDROSTATIC SEAT
150# 450 PSIg 325 PSIg
Sr. No. Parts Name Materials
1 BODY ASTM A 216 Gr. WCB
2 BOTTOM COVER ASTM A 216 Gr. WCB
3 PLUG ASTM A216 Gr. WCB+CASE HARDENED & BONDED WITH LOW FRICTION COATING
4 STEM AISI 410+CASE HARDENED & BONDED BONDED WITH LOW FRICTION COATING
5 GLAND PATA CARBON STEEL
6 BOTTOM GASKET SS316 SP WND CAF FILLER
7 GLAND PACKING GRAFOIL RINGS
8 BALL SEAT AISI 304
9 BALANCING DISC AISI 304
10 ADJUSTING SCREW ASTM A276 T410
11 ADJUSTING SCREW NUT ASTM A276 T410
12 BOTTOM COVER BOLT ASTM A193 Gr. B7
13 GLAND STUD ASTM A193 Gr. B7
14 GLAND STUD NUT ASTM A194 Gr. 2H
15 LUBRICANT SCREW ASTM A276 T410
16 CHECK VALVE ASTM A276 T410
17 BALL ASTM A276 T410
18 GEAR BOX PLATE CARBON STEEL
19 BALL AISI 304
20 SHEEM AISI 304+PTFE
21 GEAR BOX. MFG. STD.
22 GLAND AISI 410
23 ANTI-STATIC DEVICE SS

NOTE : –

  1. ALL DIM. ARE IN MM UNLESS OTHERWISE SPECIFIED.
  2.  CASTING WILL BE 10% RADIOGRAPHY,
  3. ONLINE MAINTENACE THROUGH SEALANT INJECTOR FACILITY.

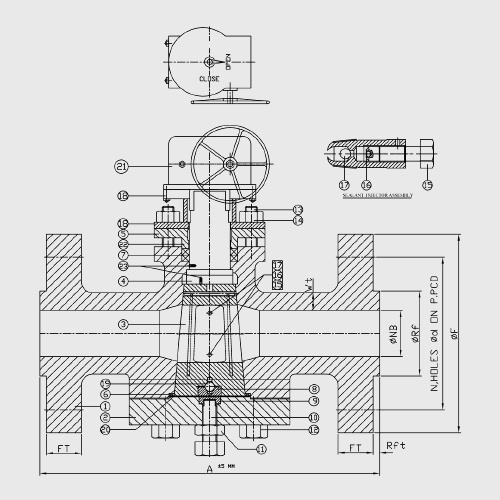

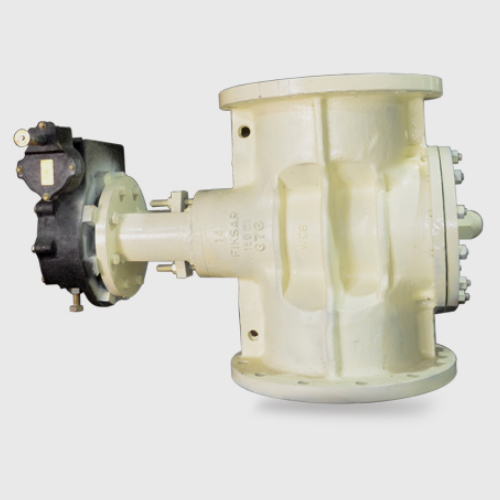

2-12 x 300 Pressure Balancing Plug Valve

SIZE ØNB ØF FT ØRf Rft ød N P A QTY.
50MM 51 216 165 20.7 92.1 2.0 19.1 127 8
65MM 64 241 190 23.9 104.8 2.0 22.2 149.2 8
80MM 76 282 210 27.0 127 2.0 22.2 168.3 8
100MM 102 305 255 30.2 157.2 2.0 22.2 200.0 8
150MM 152 403 320 35.0 215.9 2.0 22.2 269.9 12
200MM 203 419 380 39.7 269.9 2.0 25.4 330.2 12
250MM 254 457 445 46.1 323.8 2.0 28.6 387.4 16
300MM 305 502 520 49.3 381 2.0 31.8 450.8 16
CLASS HYDROSTATIC BODY HYDROSTATIC SEAT
300# 1110 PSIg 815 PSIg
Sr. No. Parts Name Materials
1 BODY ASTM A216 Gr. WCB
2 BOTTOM COVER ASTM A216 Gr. WCB
3 PLUG WCB+STELLITE#6 ON SEAT+AFT
4 STEM ASTM A322 Gr. 4140+AFT
5 GLAND ASTM A 216 Gr. WCB
6 BOTTOM GASKET PTFE
7 GLAND PACKING GRAPHITE
8 BALL SEAT AISI 304
9 BALANCING DISC AISI 304
10 ADJUSTING SCREW AISI 410
11 ADJUSTING SCREW NUT AISI 410
12 BOTTOM COVER BOLT ASTM A193 Gr. B7
13 GLAND STUD ASTM A193 Gr. B7
14 GLAND STUD NUT ASTM A194 Gr. 2H
15 LUBRICANT SCREW AISI 410
16 CHECK VALVE BODY AISI 410
17 CHECK VALVE BALL AISI 410
18 CHECK VALVE SPRING SPRING STEEL
19 BALL AISI 304
20 SHEEM AISI 304+PTFE
21 GEAR BOX. MFG. STD.

NOTE : –

  1. ALL DIM. ARE IN MM UNLESS OTHERWISE SPECIFIED.

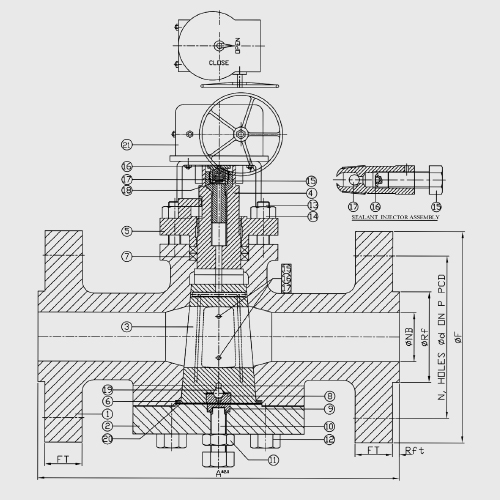

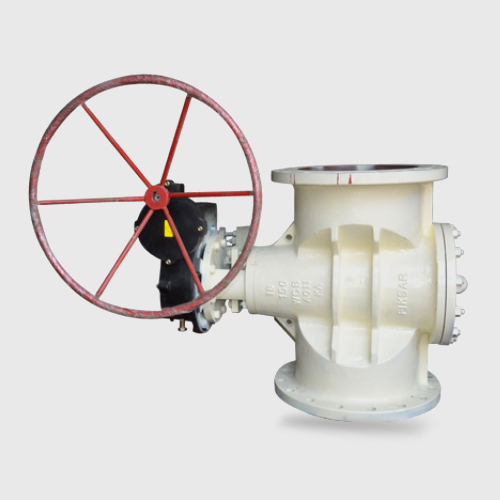

2-12 x 600 Pressure Balancing Plug Valve

SIZE ØNB ØF FT ØRf Rft ød N P A QTY.
50MM 51 292 165 25.4 92.1 7.0 19.1 127 8
65MM 64 330 190 28.6 104.8 7.0 22.2 149.2 8
80MM 76 356 210 31.8 127 7.0 22.2 168.3 8
100MM 102 432 275 38.1 157.2 7.0 25.4 215.9 8
150MM 152 559 355 47.7 215.9 7.0 28.6 292.1 12
200MM 200 660 420 55.6 269.9 7.0 31.8 349.2 12
250MM 248 787 510 63.5 323.8 7.0 35.0 431.8 16
300MM 298 838 560 66.7 381 7.0 35.0 489.0 20
CLASS HYDROSTATIC BODY HYDROSTATIC SEAT
300# 2150 PSIg 1600 PSIg
Sr. No. Parts Name Materials
1 BODY ASTM A216 Gr. WCB
2 BOTTOM COVER ASTM A216 Gr. WCB
3 PLUG WCB+STELLITE#6 ON SEAT+AFT
4 STEM ASTM A322 Gr. 4140+AFT
5 GLAND ASTM A 216 Gr. WCB
6 BOTTOM GASKET PTFE
7 GLAND PACKING GRAPHITE
8 BALL SEAT AISI 304
9 BALANCING DISC AISI 304
10 ADJUSTING SCREW AISI 410
11 ADJUSTING SCREW NUT AISI 410
12 BOTTOM COVER BOLT ASTM A193 Gr. B7
13 GLAND STUD ASTM A193 Gr. B7
14 GLAND STUD NUT ASTM A194 Gr. 2H
15 LUBRICANT SCREW AISI 410
16 CHECK VALVE BODY AISI 410
17 CHECK VALVE BALL AISI 410
18 CHECK VALVE SPRING SPRING STEEL
19 BALL AISI 304
20 SHEEM AISI 304+PTFE
21 GEAR BOX. MFG. STD.

NOTE : –

  1. ALL DIM. ARE IN MM UNLESS OTHERWISE SPECIFIED.

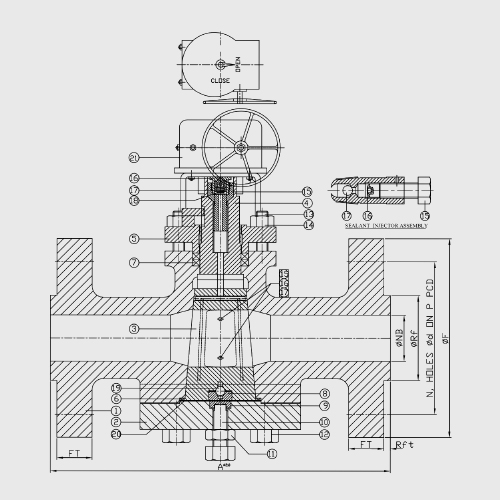

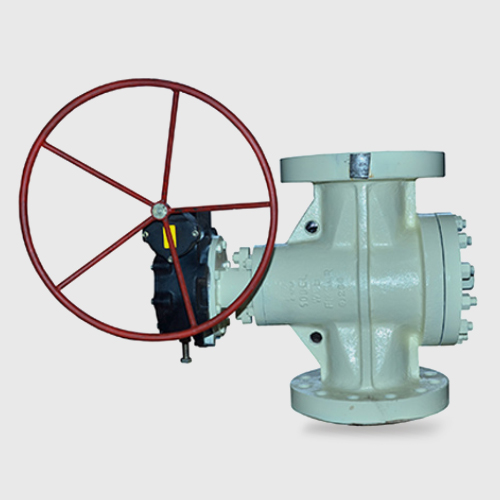

2-12 x 900 Pressure Balancing Plug Valve

SIZE ØNB ØF FT ØRf Rft ød N P A QTY.
50MM 48 368 215 38.1 92 7.0 165.1 25.8 8
65MM 57 419 245 41.3 105 7.0 190.5 28.6 8
80MM 73 381 240 38.1 127 7.0 190.5 25.4 8
100MM 99 457 290 44.5 157 7.0 235.0 31.8 8
150MM 146 610 380 55.6 216 7.0 317.5 31.8 12
200MM 191 737 470 63.5 270 7.0 393.7 38.1 12
250MM 338 838 545 69.9 324 7.0 469.9 38.1 16
300MM 283 965 610 79.4 381 7.0 533.4 38.1 20
CLASS HYDROSTATIC BODY HYDROSTATIC SEAT
900# 3330 PSIg 2445 PSIg
Sr. No. Parts Name Materials
1 BODY ASTM A216 Gr. WCB
2 BOTTOM COVER ASTM A216 Gr. WCB
3 PLUG WCB+STELLITE#6 ON SEAT+AFT
4 STEM ASTM A322 Gr. 4140+AFT
5 GLAND ASTM A 216 Gr. WCB
6 BOTTOM GASKET PTFE
7 GLAND PACKING GRAPHITE
8 BALL SEAT AISI 304
9 BALANCING DISC AISI 304
10 ADJUSTING SCREW AISI 410
11 ADJUSTING SCREW NUT AISI 410
12 BOTTOM COVER BOLT ASTM A193 Gr. B7
13 GLAND STUD ASTM A193 Gr. B7
14 GLAND STUD NUT ASTM A194 Gr. 2H
15 LUBRICANT SCREW AISI 410
16 CHECK VALVE BODY AISI 410
17 CHECK VALVE BALL AISI 410
18 CHECK VALVE SPRING SPRING STEEL
19 BALL AISI 304
20 SHEEM AISI 304+PTFE
21 GEAR BOX. MFG. STD.

NOTE : –

  1. ALL DIM. ARE IN MM UNLESS OTHERWISE SPECIFIED.
