Pulp Valve

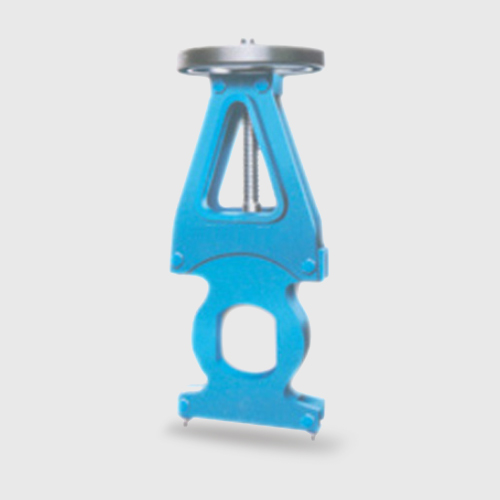

PULP VALVE-DOUBLE GLAND
India’s is the Top Manufacturer of Pulp Valve, Industrial Valve Exporter,Pulp Valve at Best Price in India

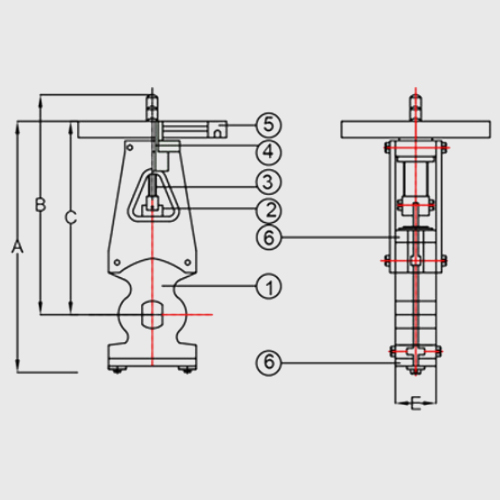

| SR. NO. | PART NAME | QTY | MATERIAL |
| 1 | BODY | 1 | IS 210 Gr.FG 220 C.I. |
| 2 | YOKE PLATE | 1 | SS 304 (AISI 304) |
| 3 | SPINDLE | 1 | SS 410 (AISI 410) |
| 4 | KEY NUT | 1 | GUN METAL (85/5/5/5) |
| 5 | WHEEL | 1 | IS 210 Gr.FG 220 C.I. |
| 6 | GLAND | 1 | IS 210 Gr.FG 220 C.I. |
| PN 16 | ||||
| SIZE | ‘A’ | ‘B’ | ‘C’ | ‘E’ |
| 2″/50 | 380 | 375 | 305 | 41 |
| 3″/80 | 406 | 388 | 370 | 48 |
| 4″/100 | 465 | 480 | 360 | 48 |
| 5″/125 | 555 | 545 | 523 | 53 |
| 6″/150 | 603 | 622 | 445 | 57 |
| 8″/200 | 700 | 613 | 435 | 58 |
| 10″/250 | 800 | 790 | 610 | 65 |
| 12″/300 | 970 | 1000 | 715 | 75 |
| TEST PRESSURE | |
| SIZE | BODY |
| UP TO 100mm | 10 kg/cm2 |
| 120 TO 200mm | 6 kg/cm2 |
| 250 TO 300mm | 4 kg/cm2 |
NOTE :- ALL DIM. ARE IN MM UNLESS OTHERWISE SPECIFIED
